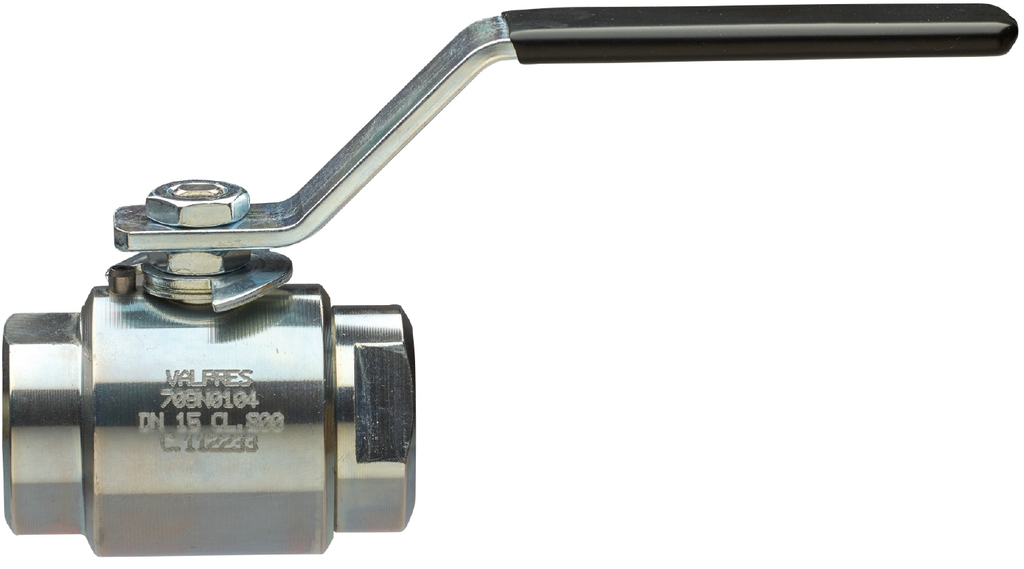

ball valve made of stainless steel series BA469-LLD-A3C; ATEX II 2 G/D; Fire-Safe; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160°C; nominal diameter 10mm; pressure range 0...138bar; connection RP 3/8"; length 67mm; free of oil and grease; Class 800; with locking device; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Country of origin: Italy
Weight: 0.609 Kg
Short Itemnumber: BA46938LLDA3C
ball valve made of stainless steel series BA469-LLD-A3C; ATEX II 2 G/D; Fire-Safe; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160°C; nominal diameter 10mm; pressure range 0...138bar; connection RP 3/8"; length 67mm; free of oil and grease; Class 800; with locking device; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Technical specifications
| Pressure range | 0...138 bar |
|---|---|
| Connection | RP 3/8" |
| DN | 10 mm |
| Length | 67 mm |
| Pressure range | 0...138 bar |
| Connection | RP 3/8" |
| DN | 10 mm |
| Length | 67 mm |
| Female thread | RP 3/8" |
| Design | ATEX |
BA469-38-LLD-A3C
