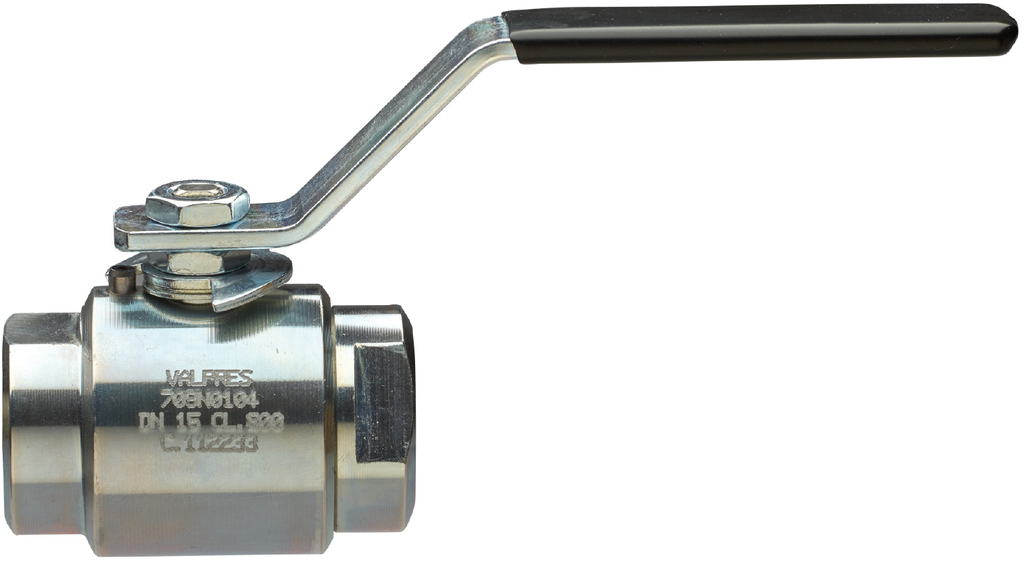

ball valve made of stainless steel series BA469-LLD-A3C; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160 °C; connection RP 3/4"; nominal diameter 20mm; Class 800; pressure range 0...138 bar; length 90mm; antistatic design; Fire-Safe; ATEX II 2 G/D c T3; free of oil and grease; with locking device; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Country of origin: Italy
Weight: 1.597 Kg
Short Itemnumber: BA46934LLDA3C
ball valve made of stainless steel series BA469-LLD-A3C; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160 °C; connection RP 3/4"; nominal diameter 20mm; Class 800; pressure range 0...138 bar; length 90mm; antistatic design; Fire-Safe; ATEX II 2 G/D c T3; free of oil and grease; with locking device; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Technical specifications
| Pressure range | 0...138 bar |
|---|---|
| Connection | RP 3/4" |
| Female thread | RP 3/4" |
| DN | 20 mm |
| Pressure range | 0...138 bar |
| Connection | RP 3/4" |
| Female thread | RP 3/4" |
| DN | 20 mm |
| Length | 90 mm |
| Design | ATEX |
BA469-34-LLD-A3C
