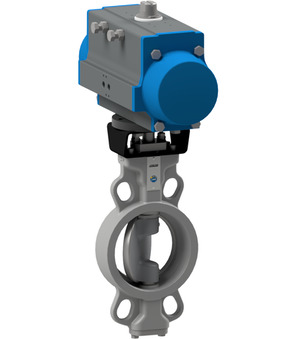

BUW9-200-CSIQ-D42-ABS54-C001-03-C002-31-LVCV20-2

BUW9-200-CSIQ-D42-ABS54-C001-03-C002-31-LVCV20-2

BUW9-200-CSIQ-D42
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Actuator PAD200-H
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC

Absperrklappe mit Druckluftdrehantrieb Serie BUW9-CSIS-D4
Absperrklappe mit Druckluftdrehantrieb Serie BUW9-CSIS-D4
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 64.58 Kg
Short Itemnumber: BUW9200CSIQD42ABS54C00103C00231LVCV202
https://www.stasto.pl/web/image/product.template/205610/image_1920?unique=69216c5

BUW9-200-CSIQ-D42
butterfly valve with pneumatic actuator series BUW9-CSIS-D4; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 200mm; length 61mm; actuator PAD200-H
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; with integrated LED-yellow, VDR and PVC-cable (2 m); voltage 24VAC/DC

19.733,10 zł 19733.1 PLN 19.733,10 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 200 mm
Length 61 mm
Voltage 24VDC / 48V/50-60Hz
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 200 mm
Length 61 mm
Voltage 24VDC / 48V/50-60Hz
Design With integrated LED-yellow, VDR and PVC-cable (2 m)
Brand STASTO

BUW9-200-CSIQ-D42-ABS54-C001-03-C002-31-LVCV20-2

Documents

10 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

4
German / Deutsch
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

4
English
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

4
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

4
French / Français
ZIP

Data Sheets

3

CAD / 3D

4
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

4
Hungarian / Magyar
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

4
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

4
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

4
Polish / Język polski
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

4
Slovenian / slovenščina
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

4
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

4
Butterfly valve with pneumatic actuator BUW9-200-CSIQ-D42
BUW9-200-CSIQ-D42 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW9-200-CSIQ-D42
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Actuator PAD200-H
Mounted pilot valve ABS54
ABS54 x 1.0 Pcs
Mounted pilot valve ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
C002-31-LVCV20-2 x 1.0 Pcs
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC
