Ball valve with pneumatic actuator Series BAC4 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAC4
  6. BAC4-009-SSTV-D0-EP0S11

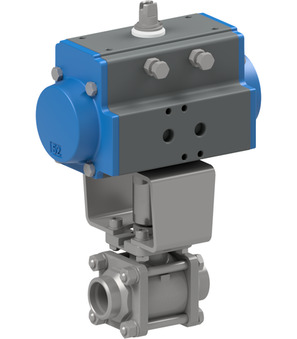

BAC4-006-SSTV-D0-EP0S11

BAC4-006-SSTV-D0-EP0S11

BAC4-009-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075
EP0S11
mounted positioner; digital I/P-positioner, 4-20 mA; actuator PAD052-270

Intrastat No.: 84818081
Country of origin: France
Weight: 8.886 Kg
Short Itemnumber: BAC4009SSTVD0EP0S11
https://www.stasto.pl/web/image/product.template/238252/image_1920?unique=94b97ec

BAC4-009-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075
EP0S11
mounted positioner; digital I/P-positioner, 4-20 mA; actuator PAD052-270

14.022,80 zł 14022.8 PLN 14.022,80 zł

cena na zapytanie

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Butt weld ends 50 mm
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
DN 50 mm
Length 136 mm
function
Function Double acting
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...
