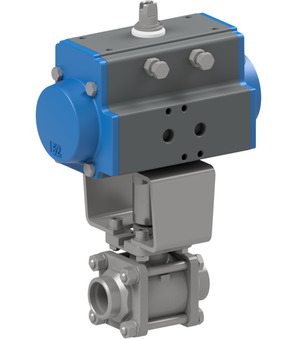

Ball valve with pneumatic actuator BAC4-006-SSTV-D0

Ball valve with pneumatic actuator BAC4-006-SSTV-D0

Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD052

Kugelhahn mit Druckluftdrehantrieb Serie BAC4
Kugelhahn mit Druckluftdrehantrieb Serie BAC4
Kugelhahn mit Druckluftdrehantrieb Serie BAC4
Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.71 Kg
Short Itemnumber: BAC4006SSTVD0
https://www.stasto.pl/web/image/product.template/86657/image_1920?unique=87fb56f

Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD052

1.880,10 zł 1880.1 PLN 1.880,10 zł

cena na zapytanie

excl. tax
  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 25 mm
Length 92 mm
Butt weld ends 25 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 25 mm
Length 92 mm
Butt weld ends 25 mm

BAC4-006-SSTV-D0

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel 712000-25
712000-25 x 1.0 Pcs
Ball valve made of stainless steel 712000-25
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
