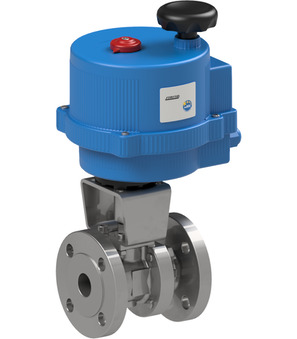

Flanged ball valve with electrical actuator 8E054002-40

Flanged ball valve with electrical actuator 8E054002-40

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 40mm; Pressure range 0-40bar; Flange PN40; Length 140mm; Operating time 9s; Voltage 24VAC/DC

Flanschkugelhahn mit Elektroantrieb Serie 8E054
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 11.69 Kg
Short Itemnumber: 8E05400240
https://www.stasto.pl/web/image/product.template/76251/image_1920?unique=8bc9da3

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 40mm; Pressure range 0-40bar; Flange PN40; Length 140mm; Operating time 9s; Voltage 24VAC/DC

5.107,10 zł 5107.1 PLN 5.107,10 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 40 mm
Flange PN40
Length 140 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 40 mm
Flange PN40
Length 140 mm
Operating time 9 s
Voltage 24VAC/DC

8E054002-40

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 760001-40
760001-40 x 1.0 Pcs
Flanged ball valve 760001-40
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 140mm
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI3521 x 1.0 Pcs
RI3521
Mounting kit for PKH F07/F05-F05 stud 14-10
Accessory Products
Flanged ball valve 760001-40
760001-40
Flanged ball valve 760001-40
DN
40 mm
Flange
PN40
Design
ATEX
Pressure range
0...40 bar
