BADA-032-CITV-D0-ABS51-C001-03-C002-31-6

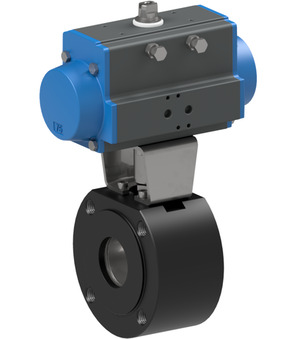

Flanged ball valve with pneumatic actuator BADA-032-CITV-D0
Flanged ball valve with pneumatic actuator BADA-032-CITV-D0
2.152,90 zł
2.152,90 zł
BADA-032-CITV-D0-ABS51-C001-03-C002-31-LV-2
BADA-032-CITV-D0-ABS51-C001-03-C002-31-LV-2
2.823,90 zł
2.823,90 zł

BADA-032-CITV-D0-ABS51-C001-03-C002-31-6

BADA-032-CITV-D0
Flanged ball valve with pneumatic actuator Series BADA; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 32mm; Length 54mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.99 Kg
Short Itemnumber:BADA032CITVD0ABS51C00103C002316
https://www.stasto.pl/web/image/product.template/198394/image_1920?unique=d9024cc

BADA-032-CITV-D0
flanged ball valve with pneumatic actuator series BADA; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 32mm; length 54mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

2.800,20 zł 2800.2 PLN 2.800,20 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 32 mm
Length 54 mm
Designs
Connector size 22
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...16 bar
characteristics
Coil C001
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
4
Data sheet_Coil Type C001_EN.pdf
C001-03
Download
Data sheet_Connector Type C002_EN.pdf
C002-31-6
Download
Data sheet_Flanged ball valve with pneumatic actuator Series BADA_EN.pdf
