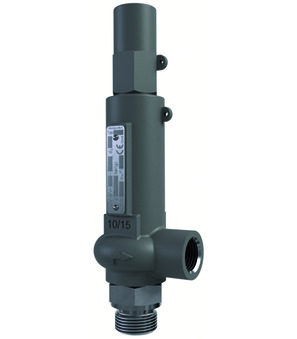

Safety valve SV06-12W1-6-165-I-3C
Safety valve Series SV06; ATEX zone 0 and 20; Body 1.4571; Cap 1.4581; Gas-proof cover; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet male G 1/2"; DN 6mm; Outlet female G 3/4"; Set pressure 165Bar; Seat seal PEEK; Other seals FKM
Intrastat No.: 84814010
Country of origin: Germany
Weight: 4.19 Kg
Short Itemnumber: SV0612W16165I3C
Country of origin: Germany
Weight: 4.19 Kg
Short Itemnumber: SV0612W16165I3C
safety valve series SV06; ATEX zone 0 and 20; body AISI 316Ti; cap AISI 316Ti; gas-proof cover; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet male G 1/2"; DN 6mm; outlet female G 3/4"; set pressure 165bar; seat seal PEEK; other seals FKM
| dimension | |
|---|---|
| DN | 6 mm |
| Inlet male | G 1/2" |
| Outlet female | G 3/4" |
| design | |
| Design | ATEX |
| materials | |
| Seat seal | PEEK |
| Other seals | FKM |
| characteristics | |
| Set pressure | 165 bar |
No spare parts are available for this product.
