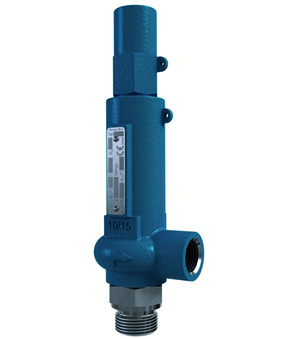

Safety valve SV05-34R-12,5-22-A
Safety valve Series SV05; Body 1.4571; Cap Ductile iron EN-GJS-400-15; Gas-proof cover; Inlet male G 3/4"; DN 12,5mm; Outlet female G 1/2"; Seat seal metallisch; Other seals NBR; Set pressure 22bar
Intrastat No.: 84814010
Country of origin: Germany
Weight: 1.05 Kg
Short Itemnumber: SV0534R12.522A
Country of origin: Germany
Weight: 1.05 Kg
Short Itemnumber: SV0534R12.522A
Safety valve Series SV05; Body AISI 316Ti; Cap Ductile iron EN-GJS-400-15, From set pressure 200bar AISI 316Ti; Gas-proof cover; Inlet male G 3/4"; DN 12,5mm; Outlet female G 1/2"; Seat seal metallisch; Other seals NBR; Set pressure 22bar
| dimension | |
|---|---|
| DN | 12,5 mm |
| Inlet male | G 3/4" |
| Outlet female | G 1/2" |
| materials | |
| Seat seal | Metallic |
| Other seals | NBR |
| characteristics | |
| Set pressure | 8 bar |
No spare parts are available for this product.
