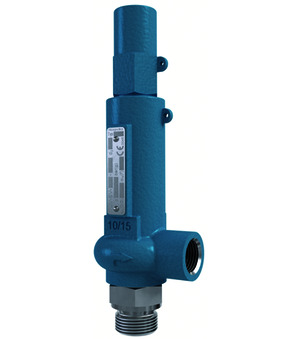

Safety valve SV05-34-12,5-15-V-0
safety valve series SV05; body AISI 316Ti; cap ductile iron EN-GJS-400-15; lifting lever; inlet male G 3/4"; DN 12,5mm; outlet female G 3/4"; seat seal FKM; other seals FKM; set pressure 15bar
Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber: SV053412.515V0
Country of origin: Germany
Short Itemnumber: SV053412.515V0
safety valve series SV05; body AISI 316Ti; cap ductile iron EN-GJS-400-15; lifting lever; inlet male G 3/4"; DN 12,5mm; outlet female G 3/4"; seat seal FKM; other seals FKM; set pressure 15bar
| dimension | |
|---|---|
| DN | 12,5 mm |
| Inlet male | G 3/4" |
| Outlet female | G 3/4" |
| materials | |
| Seat seal | FKM |
| Other seals | FKM |
| characteristics | |
| Set pressure | 15 bar |
No spare parts are available for this product.
