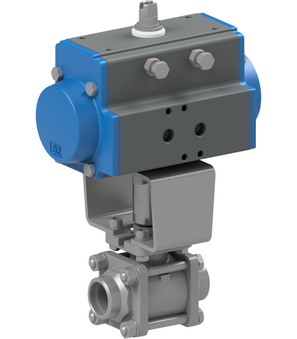

Ball valve with pneumatic actuator BA091-40-D0-01

Ball valve with pneumatic actuator BA091-40-D0-01

Ball valve with pneumatic actuator Series BA091-D0B/D01; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Pressure range Steam 0...15bar; Length 116mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 5.87 Kg
Short Itemnumber: BA09140D001
https://www.stasto.pl/web/image/product.template/138691/image_1920?unique=909baaf

ball valve with pneumatic actuator series BA091-D0B/D01; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator, oversized; control pressure 5,5...8bar; medium temperature -20...+198°C; nominal diameter 40mm; pressure range steam 0...15bar; length 116mm; actuator PAD075

2.986,30 zł 2986.3 PLN 2.986,30 zł

cena na zapytanie

excl. tax
  • Diameter
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range Steam
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 40 mm
Pressure range Steam 0...15 bar
Length 116 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 40 mm
Pressure range Steam 0...15 bar
Length 116 mm

BA091-40-D0-01

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA091-40-L
BA091-40-L x 1.0 Pcs
Ball valve made of stainless steel BA091-40-L
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Length 116mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
