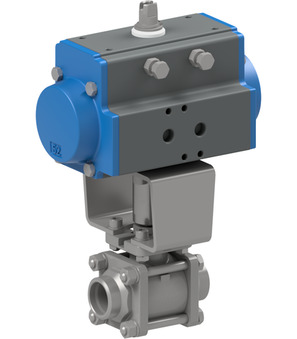

Ball valve with pneumatic actuator BA091-15-D0B

Ball valve with pneumatic actuator BA091-15-D0B

Ball valve with pneumatic actuator Series BA091-D0B/D01; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 15mm; Pressure range Steam 0...15bar; Length 65mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.713 Kg
Short Itemnumber: BA09115D0B
https://www.stasto.pl/web/image/product.template/138658/image_1920?unique=909baaf

ball valve with pneumatic actuator series BA091-D0B/D01; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator, oversized; control pressure 5,5...8bar; medium temperature -20...+198°C; nominal diameter 15mm; pressure range steam 0...15bar; length 65mm; actuator PAD052

1.568,20 zł 1568.2 PLN 1.568,20 zł

cena na zapytanie

excl. tax
  • Diameter
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range Steam
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
DN 15 mm
Pressure range Steam 0...15 bar
Length 65 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
DN 15 mm
Pressure range Steam 0...15 bar
Length 65 mm

BA091-15-D0B

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA091-15-L
BA091-15-L x 1.0 Pcs
Ball valve made of stainless steel BA091-15-L
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 15mm; Length 65mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3789 x 1.0 Pcs
RI3789
Mounting bracket; F03; Bolt 9-7
