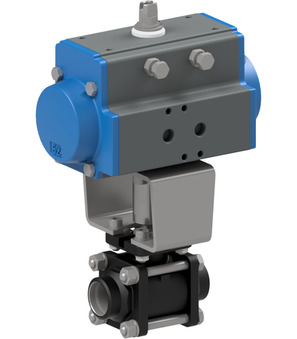

Ball valve with pneumatic actuator BA078-100-D0-01

Ball valve with pneumatic actuator BA078-100-D0-01

Ball valve with pneumatic actuator Series BA078-D0B/D01; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 100mm; Pressure range Steam 0...15bar; Length 217mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 32.12 Kg
Short Itemnumber: BA078100D001
https://www.stasto.pl/web/image/product.template/138716/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA078-D0B/D01; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator, oversized; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 100mm; pressure range steam 0...15bar; length 217mm; actuator PAD115

8.855,40 zł 8855.4 PLN 8.855,40 zł

cena na zapytanie

  • Diameter
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range Steam
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 217 mm
pressure
Pressure range 0...16 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD115

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA078100D001.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA078-D0B/D01_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA078-D0B/D01_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA078-D0B/D01_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA078-D0B/D01_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA078-D0B/D01_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA078-D0B/D01_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA078-D0B/D01_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA078-D0B/D01_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA078-D0B/D01_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA078-D0B/D01_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA078-D0B/D01_SV.pdf
Download
Ball valve made of steel BA078-100-L
BA078-100-L x 1.0
Ball valve made of steel BA078-100-L
Ball valve made of steel Series BA078-L; For steam; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 100mm; Length 217mm
Add to Cart
Pneumatic actuator PAD115
PAD115 x 1.0
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
Add to Cart
