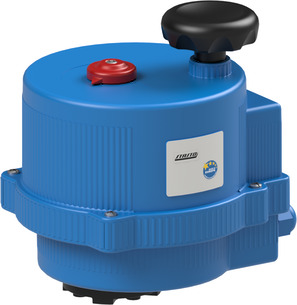

Electrical actuator VB060-L-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
Intrastat No.: 85013100
Country of origin: Italy
Weight: 3.25 Kg
Short Itemnumber:VB060LP0S
Country of origin: Italy
Weight: 3.25 Kg
Short Itemnumber:VB060LP0S
electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. positioner 4-20mA/0-10V; torque 60Nm; operating time 9s; flange ISO5211 F05/F07-Stern 14 mm; voltage 24VAC/DC; protection class IP67
Specifications
| Designs | |
|---|---|
| Flange ISO5211 | F05/F07-star 14mm |
| Electrical key figures | |
|---|---|
| Voltage | 24VAC/DC |
| characteristics | |
|---|---|
| Torque | 60 Nm |
| Operating time | 9 s |
| Others | |
|---|---|
| Protection class | IP67 |
| Designs | |
|---|---|
| Flange ISO5211 | F05/F07-star 14mm |
| Electrical key figures | |
| Voltage | 24VAC/DC |
| characteristics | |
| Torque | 60 Nm |
| Operating time | 9 s |
| Others | |
| Protection class | IP67 |
No spare parts are available for this product.
