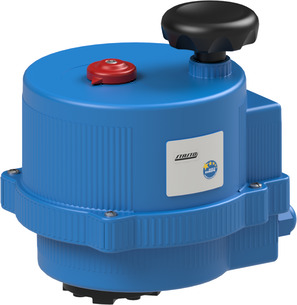

Electrical actuator VB030-H-P0S

Electrical actuator VB030-H-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 2.24 Kg
Short Itemnumber: VB030HP0S
https://www.stasto.pl/web/image/product.template/73482/image_1920?unique=0ec923a

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67

3.573,20 zł 3573.2 PLN 3.573,20 zł

cena na zapytanie

excl. tax
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Torque 30 Nm
Operating time 8 s
Flange ISO5211 F03/F05-star 11mm
Voltage 100-240VAC
All specifications (5)
Documents
Data sheets, drawings and CAD files
Torque 30 Nm
Operating time 8 s
Flange ISO5211 F03/F05-star 11mm
Voltage 100-240VAC
Protection class IP67

VB030-H-P0S

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
