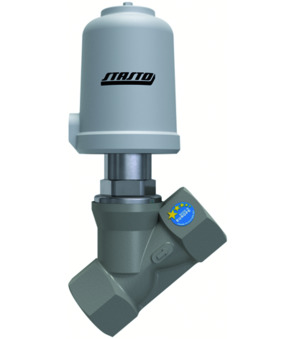

Pneumatically operated seat valve SE01-34-ST51-06
Pneumatically operated seat valve Series SE01-ST-HT; High temperature design; ATEX Area 1,21; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; Incl. Splash water protection; G 3/4"; DN 20mm; Operating pressure 0…27bar; Control pressure 5…10bar; Diameter Actuator 50mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 1.26 Kg
Short Itemnumber: SE0134ST5106
Country of origin: Germany
Weight: 1.26 Kg
Short Itemnumber: SE0134ST5106
pneumatically operated seat valve series SE01-ST-HT; high temperature design; ATEX area 1,21; NC; body stainless steel AISI 316; seal PTFE; female thread; for gaseous media; closing with flow; medium temperature -30...+200°C; incl. splash water protection; G 3/4"; DN 20mm; operating pressure 0…27bar; control pressure 5…10bar; diameter actuator 50mm
| dimension | |
|---|---|
| Female thread | G 3/4" |
| DN | 20 mm |
| Diameter Actuator | 50 mm |
| design | |
| Design | ATEX |
| pressure | |
| Operating pressure | 0...27 bar |
| Control pressure | 5...10 bar |
No spare parts are available for this product.
