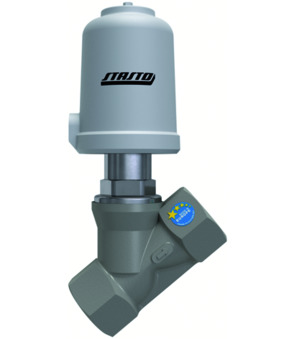

Pneumatically operated seat valve SE01-10-ST51-06

Pneumatically operated seat valve SE01-10-ST51-06

Pneumatically operated seat valve Series SE01-ST-HT; High temperature design; ATEX Area 1,21; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; Incl. Splash water protection; G 1"; DN 25mm; Operating pressure 0…15bar; Control pressure 5…10bar; Diameter Actuator 50mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 1.26 Kg
Short Itemnumber:SE0110ST5106
https://www.stasto.pl/web/image/product.template/147529/image_1920?unique=3190a4b

pneumatically operated seat valve series SE01-ST-HT; high temperature design; ATEX area 1,21; NC; body stainless steel AISI 316; seal PTFE; female thread; for gaseous media; closing with flow; medium temperature -30...+200°C; incl. splash water protection; G 1"; DN 25mm; operating pressure 0…15bar; control pressure 5…10bar; diameter actuator 50mm

3.177,70 zł 3177.7 PLN 3.177,70 zł

cena na zapytanie

  • Female thread
  • DN
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 25 mm
Diameter Actuator 50 mm
design
Design ATEX
pressure
Operating pressure 0...15 bar
Control pressure 5...10 bar
No spare parts are available for this product.
