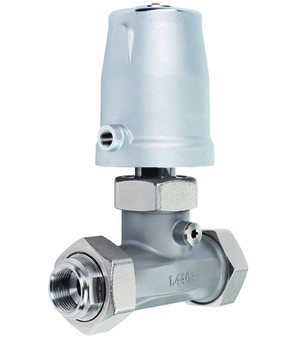

Pinch valve Series PI03; NC; Connection parts 1.4435; Tube NBR food-safe; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Control pressure 5,6-10bar; Diameter Actuator 50mm
Country of origin: Germany
Weight: 1.97 Kg
Short Itemnumber: PI0312NZS53
pinch valve series PI03; NC; connection parts AISI 316L; tube NBR food-safe; medium temperature -20...+80°C; RP 1/2"; DN 15mm; pressure range 0-6bar; control pressure 5,6-10bar; diameter actuator 50mm
Technical specifications
| Pressure range | 0...6 bar |
|---|---|
| Connection | parts 1.4435 |
| Female thread | RP 1/2" |
| DN | 15 mm |
| Pressure range | 0...6 bar |
| Connection | parts 1.4435 |
| Female thread | RP 1/2" |
| DN | 15 mm |
| Control pressure | 5,6...10 bar |
| Diameter Actuator | 50 mm |
PI03-12-NZS-53
