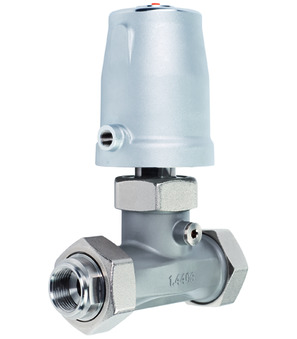

NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°CPinch valve Series PI04
Pinch valves - pneumatically operated
Pinch valve Series PI08
Directly operated; Connection Female thread; Connection part Stainless steel; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+80 °C
Grundversion
| Female thread | DN | Length | Control port | Operating pressure | Body | Voltage | Voltage type | Design | Cable length | Approval | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 1 1/4" | 32 mm | 140 mm | 1/4" | 0...6 bar | Aluminum | - | - | - | - | - | PI08-114-RZA-14 | 31180004 |
| G 1 1/2" | 40 mm | 160 mm | 1/4" | 0...6 bar | Aluminum | - | - | - | - | - | PI08-112-RZA-14 | 31180006 |
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | - | - | - | - | - | PI08-12-RZ0-18 | 31180007 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | - | - | - | - | - | PI08-34-RZA-18 | 31180014 |
| G 1" | 25 mm | 120 mm | 1/8" | 0...5,5 bar | Aluminum | - | - | - | - | - | PI08-10-RZA-18 | 31180022 |
Varianten
| Female thread | DN | Length | Control port | Operating pressure | Body | Voltage | Voltage type | Design | Cable length | Approval | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | 24VDC | DC | Standard | - | CE | PI08-12-RZ0-18-ABS33-BDA08024CS-C003-32-6 | 31180008 |
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | 24VDC | DC | With moulded PVC-cable (2 m) | - | CE | PI08-12-RZ0-18-ABS33-BDA08024CS-C003-31-CV20-6 | 31180009 |
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | 24VDC | DC | With integrated LED-yellow and VDR | - | CE | PI08-12-RZ0-18-ABS33-BDA08024CS-C003-32-LV-2 | 31180010 |
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | 220-230V/50-60Hz | AC | Standard | - | CE | PI08-12-RZ0-18-ABS33-BDA08223DS-C003-32-6 | 31180011 |
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | 220-230V/50-60Hz | AC | With moulded PVC-cable (2 m) | - | CE | PI08-12-RZ0-18-ABS33-BDA08223DS-C003-31-CV20-6 | 31180012 |
| G 1/2" | 15 mm | 95 mm | 1/8" | 0...5,5 bar | POM | 220-230V/50-60Hz | AC | With integrated LED-yellow and VDR | - | CE | PI08-12-RZ0-18-ABS33-BDA08223DS-C003-32-LV-1 | 31180013 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 24VDC | DC | Standard | - | CE | PI08-34-RZA-18-ABS33-BDA08024CS-C003-32-6 | 31180015 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 24VDC | DC | With moulded PVC-cable (2 m) | - | CE | PI08-34-RZA-18-ABS33-BDA08024CS-C003-31-CV20-6 | 31180016 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 24VDC | DC | With integrated LED-yellow and VDR | - | CE | PI08-34-RZA-18-ABS33-BDA08024CS-C003-32-LV-2 | 31180017 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 110VDC | DC | Standard | - | CE | PI08-34-RZA-18-ABS33-BDA08110CS-C003-32-6 | 31180018 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 220-230V/50-60Hz | AC | Standard | - | CE | PI08-34-RZA-18-ABS33-BDA08223DS-C003-32-6 | 31180019 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 220-230V/50-60Hz | AC | With moulded PVC-cable (2 m) | - | CE | PI08-34-RZA-18-ABS33-BDA08223DS-C003-31-CV20-6 | 31180020 |
| G 3/4" | 20 mm | 103 mm | 1/8" | 0...5,5 bar | Aluminum | 220-230V/50-60Hz | AC | With integrated LED-yellow and VDR | - | CE | PI08-34-RZA-18-ABS33-BDA08223DS-C003-32-LV-1 | 31180021 |
| G 1" | 25 mm | 120 mm | 1/8" | 0...5,5 bar | Aluminum | 24VDC | DC | Standard | - | CE | PI08-10-RZA-18-ABS33-BDA08024CS-C003-32-6 | 31180023 |
| G 1" | 25 mm | 120 mm | 1/8" | 0...5,5 bar | Aluminum | 24VDC | DC | With moulded PVC-cable (2 m) | - | CE | PI08-10-RZA-18-ABS33-BDA08024CS-C003-31-CV20-6 | 31180024 |
