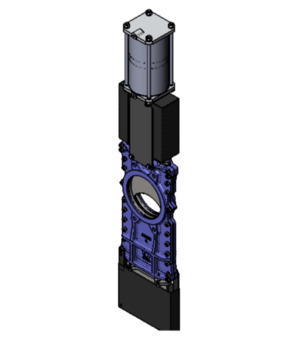

Knife gate valve with double acting actuator L1S2H2-5-71,3-PIB
Knife gate valve with single-acting pneumatic actuator series L1N; NC; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 71,3mm; length 40mm; pressure range 0...10bar
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: L1S2H2571.3PIB
Knife gate valve with single-acting pneumatic actuator series L1N; NC; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 71,3mm; length 40mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 65 mm |
| Length | 40 mm |
| pressure | |
| Pressure range | 0...10 bar |
