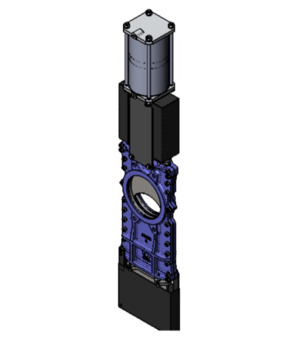

Knife gate valve with double-acting pneumatic actuator L1N2H2-5-65-B (copy)
knife gate valve with double acting actuator series L1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 65mm; length 40mm; pressure range 0...10bar
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: L1N2H2565PIB
knife gate valve with double acting actuator series L1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; ; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 65mm; length 40mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 65 mm |
| Length | 40 mm |
| pressure | |
| Pressure range | 0...10 bar |
