Flow monitor changeover contact-1"-1...4-250-250-1,5-130 (copy)

Price:

3.823,20 zł
Flow monitors Series FM24 Store
  1. Products
  2. Armatures
  3. Pressure switches, measuring instruments and flow monitors
  4. Other materiales - A06
  5. Flow monitors Series FM24
  6. FM24-10-N-4-03

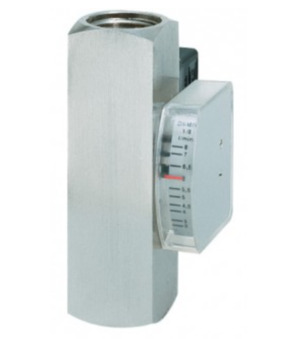

Flow monitor changeover contact-1"-1...4-250-250-1,5-130 (copy)
Flow monitors FM24-10-N-30-02
Flow monitors FM24-10-N-30-02
cena na zapytanie
Flow monitors Schließer-3/4"-20...60-300-250-3-130
Flow monitors Schließer-3/4"-20...60-300-250-3-130
cena na zapytanie

Flow monitor changeover contact-1"-1...4-250-250-1,5-130 (copy)

flow monitors series FM24; viscosity compensated ...600mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; application: monitoring of lubrication; switch unit change-over contact; connection G1"; switching range 1...4l/min; maximum pressure 250bar; U max. 250V; I max. 1,5A; length 130mm

Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.25 Kg
Short Itemnumber:FM2410N403
https://www.stasto.pl/web/image/product.template/219935/image_1920?unique=a921185

flow monitors series FM24; viscosity compensated ...600mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; application: monitoring of lubrication; switch unit change-over contact; connection G1"; switching range 1...4l/min; maximum pressure 250bar; U max. 250V; I max. 1,5A; length 130mm

3.823,20 zł 3823.2 PLN 3.823,20 zł

cena na zapytanie

  • Connection
  • Length
  • Switch unit
  • U max.
  • I max.
  • Maximum pressure
  • Switching range

This combination does not exist.

Availability:
Contact Us
dimension
Connection 1"
Length 130 mm
function
Switch unit Change-over contact
Electrical key figures
U max. 250 V
I max. 1,5 A
pressure
Maximum pressure 250 bar
characteristics
Switching range 1...4 l/min

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flow monitors Series FM24_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Strömungswächter Serie FM24_DE.pdf
Download
No spare parts are available for this product.
