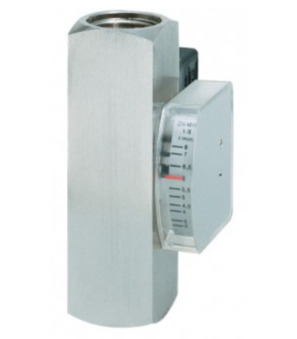

Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit Schließer; Connection 3/4"; Switching range 20...60L/min; Maximum pressure 300bar; U max. 250V; I max. 3A; Length 130mm
Country of origin: Germany
Weight: 1.39 Kg
Short Itemnumber: FM2434W60
flow monitors series FM24; viscosity compensated ...600mm²/s; body stainless steel AISI 316Ti; for any mounting position; medium temperature max. 120°C; oil scale; application: monitoring of lubrication; switch unit Schließer; connection 3/4"; switching range 20...60l/min; maximum pressure 300bar; U max. 250V; I max. 3A; length 130mm
Technical specifications
| Connection | 3/4" |
|---|---|
| Switch unit | NO contact |
| Switching range | 20...60 l/min |
| Maximum pressure | 300 bar |
| Connection | 3/4" |
| Switch unit | NO contact |
| Switching range | 20...60 l/min |
| Maximum pressure | 300 bar |
| U max. | 250 V |
| I max. | 3 A |
| Length | 130 mm |
FM24-34-W-60
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Strömungswächter Serie FM24 · DE
Data sheet 3,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Flow monitors Series FM24 · EN
Data sheet 3,3 MB Updated 13/06/2026
