Valves, butterfly valves and gate valves - manually operated

List prices PL

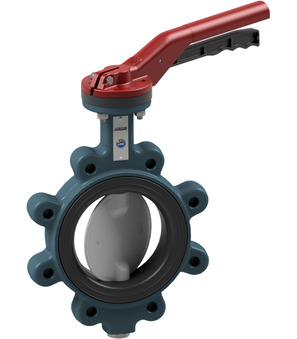

BULY-100-DSE-L-3C04
Butterfly valve with hand lever Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated C5-M According to EN-ISO 12944 RAL5009; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
To Series: Butterfly valve with hand lever Series BULG-L-3C, BULC-L-3C, BULY-L-3C
BULG-100-DSE-B-3DA
Butterfly valve with bare shaft Series BULG-DSE-B-A, BULC-DSE-B-A, BULY-DSE-B-A; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure PN10/16
To Series: Butterfly valve with bare shaft Series BULG-DSE-B-A, BULC-DSE-B-A, BULY-DSE-B-A
DN Length Flange Pressure range Design Type
100 mm 52 mm PN10/16 0...16 bar ATEX BULG-100-DSE-B-3DA
Butterfly valve with hand lever Series BULG-L-3C, BULC-L-3C, BULY-L-3C

Butterfly valve with hand lever Series BULG-L-3C, BULC-L-3C, BULY-L-3C

Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Medium temperature -10…+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

To Series: Butterfly valve with hand lever Series BULG-L-3C, BULC-L-3C, BULY-L-3C
Grundversion
DN Length Flange Pressure range Seal Type Sequence
- - - - - BULY-100-DSN-L-3C01 30020001
- - - - - BULY-150-DSE-L-3C01 30020002
65 mm 46 mm PN10/16 0...16 bar FKM BULG-065-DSV-L-3C 30020003
80 mm 46 mm ANSI150 0...16 bar - BULY-080-DSE-L-3C 30020004
80 mm 46 mm ANSI150 0...16 bar - BULY-080-DSE-L-3C01 30020005
80 mm 46 mm ANSI150 0...16 bar - BULY-080-DSN-L-01 30020006
80 mm 46 mm ANSI150 0...16 bar - BULY-080-DSN-L-3C01 30020007
80 mm 46 mm ANSI150 0...16 bar - BULY-080-DSN-L-3F02 30020008
80 mm 46 mm ANSI150 0...16 bar - BULY-080-DSN-L-3H01 30020009
80 mm 46 mm ANSI150 0...16 bar - BULY-100-DSE-L-02 30020010
80 mm 46 mm ANSI150 0...16 bar - BULY-100-DSE-L-3C01 30020011
80 mm 46 mm ANSI150 0...16 bar - BULY-100-DSE-L-3C02 30020012
80 mm 46 mm ANSI150 0...16 bar - BULY-125-DSE-L-03 30020013
80 mm 46 mm ANSI150 0...16 bar - BULY-125-DSE-L-3C02 30020014
80 mm 46 mm ANSI150 0...16 bar - BULY-125-DSE-L-3C03 30020015
80 mm 46 mm ANSI150 0...16 bar - BULY-125-DSE-L-3C05 30020016
BUW6-150-DPN-B-3C
Butterfly valve with bare shaft Series BUW6-DN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 150mm; Length 56mm; Disc GGG40 verzinkt
To Series: Butterfly valve with bare shaft Series BUW6-DN-B
DN Length Disc Type
150 mm 56 mm GGG40 Zinc plated BUW6-150-DPN-B-3C

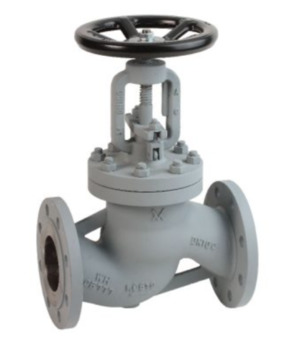

GL130-15-W-A-3C
Globe valve Series GL130-A-3C; PN40; Body Steel; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10…+400°C; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; ATEX-design; DN 15mm; Length 130mm; Pressure range 0...40bar
To Series: Globe valve Series GL130-A-3C
DN Length Pressure range Design Type
15 mm 130 mm 0...40 bar ATEX GL130-15-W-A-3C
