Butterfly valve with hand lever Series BULG-L-3C, BULC-L-3C, BULY-L-3C Store

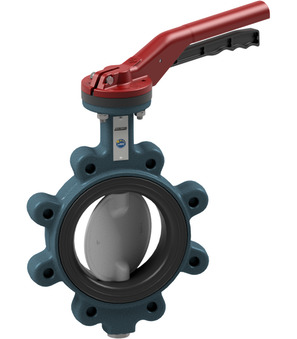

Butterfly valve with hand lever BULY-080-DSN-L-01

Name: Butterfly valve with hand lever BULY-080-DSN-L-01
Brand: STASTO
SKU: BULY-080-DSN-L-01
Price: 936.3 PLN
Availability: InStock

Butterfly valve with hand lever Series BUL-L-01; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure ANSI150; Flange thread UNC

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY080DSNL01

butterfly valve with hand lever series BUL-L-01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 80mm; length 46mm; pressure range 0...16bar; nominal flange pressure ANSI150; flange thread UNC

936,30 zł 936.3 PLN 936,30 zł

DN
- 80 mm
Length
- 46 mm
Flange
- ANSI150
Pressure range
- 0...16 bar
Seal
- -

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	46 mm
Flange	ANSI150
pressure
Pressure range	0...16 bar

BULY-080-DSN-B-01 x 1.0

Butterfly valve with bare shaft BULY-080-DSN-B-01

Butterfly valve with bare shaft Series BULY-DSN-B-01; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

Add to Cart
