Valves, butterfly valves and gate valves - automatically operated

List prices PL

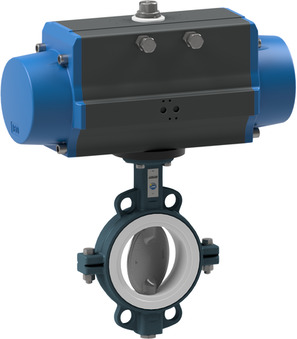

BUW4-100-DSTS-S22-A-MS-2P-052230-PF002
BUW4-100-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1405
MS-2P-052230-PF002
Mounted inductive dual proximity switch; 8,2VDC; 2 NC-Namur-EExi; Electric connection M12, 4-pin; P&F-NCN3-F31-N4-V1; For actuator 52 To 230
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
100 mm 52 mm - - - ATEX BUW4-100-DSTS-S22-A-MS-2P-052230-PF002
BUW4-100-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1405
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
100 mm 52 mm - - BUW4-100-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
Grundversion
DN Length Switch type Function Material of case Design Type Sequence
125 mm 56 mm - - - ATEX BUW4-125-DSTS-S22-A 32560008
150 mm 56 mm - - - ATEX BUW4-150-DSTS-S22-A 32560009
BUW4-150-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
150 mm 56 mm - - BUW4-150-DSTS-S22
BUW4-150-DSTS-S22-A-EB0X14
BUW4-150-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
150 mm 56 mm P&F NCN3-F25F-N4 NC-Namur - ATEX Plastic ATEX BUW4-150-DSTS-S22-A-EB0X14
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
Grundversion
DN Length Design Voltage Type Sequence
200 mm 60 mm - - BUW4-200-DSTS-S22 32560010
250 mm 68 mm - - BUW4-250-DSTS-S22 32560011
BUW4-200-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
200 mm 60 mm - - - ATEX BUW4-200-DSTS-S22-A
BUW4-250-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAS2305; ATEX zone 1 and 21
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
250 mm 68 mm ATEX - BUW4-250-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
Grundversion
DN Length Switch type Function Material of case Design Type Sequence
300 mm 78 mm - - - ATEX BUW4-300-DGTS-S22-A 32560012
300 mm 78 mm - - - ATEX BUW4-300-DSTS-S22-A 32560013
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
Grundversion
DN Length Design Voltage Type Sequence
300 mm 78 mm - - BUW4-300-DSTS-S22 32560013
400 mm 102 mm - - BUW4-400-DSTS-S22 32560014
Knife gate valve with double acting actuator Series A1N4H1-5-B

Knife gate valve with double acting actuator Series A1N4H1-5-B

ATEX II 3 G/D; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal seal with abrasion protection; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C
To Series: Knife gate valve with double acting actuator Series A1N4H1-5-B
Grundversion
DN Length Pressure range Design Type Sequence
50 mm 46 mm 0...10 bar ATEX A1N4H1-5-50-B 32570000
150 mm 60 mm 0...8 bar ATEX A1N4H1-5-150-B 32570001
150 mm 60 mm 0...8 bar ATEX A1N4H1-7-100-B 32570002
Knife gate valve with double acting actuator Series AB1N

Knife gate valve with double acting actuator Series AB1N

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A
To Series: Knife gate valve with double acting actuator Series AB1N
Grundversion
DN Length Pressure range Type Sequence
200 mm 60 mm 0...7 bar AB1N2H2-5-200-PM-B 32580000
300 mm 70 mm 0...5 bar AB1N2H2-5-300-PMB 32580001
A1N2H2-5-200-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; housing cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 200mm; length 60mm; pressure range 0...8bar
To Series: Knife gate valve with double acting actuator Series A1N-PI
DN Length Pressure range Type
200 mm 60 mm 0...8 bar A1N2H2-5-200-PI
