Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22 Store

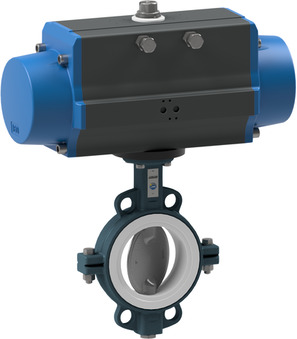

Butterfly valve with pneumatic actuator BUW4-250-DSTS-S22

Name: Butterfly valve with pneumatic actuator BUW4-250-DSTS-S22
Brand: STASTO
SKU: BUW4-250-DSTS-S22
Price: 29821.0 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAS2305

Intrastat No.: 84818085
Country of origin: Italy
Weight: 101.95 Kg
Short Itemnumber: BUW4250DSTSS22

butterfly valve with pneumatic actuator series BUW4-DSTS-S22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAS2305

29.821,00 zł 29821.0 PLN 29.821,00 zł

Valve interface Namur
- -
DN
- 250 mm
Length
- 68 mm
Connector size
- -
Design
- -
Voltage
- -
Coil
- -
Actuator
- PAS2305
Actuator 2
- -

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	250 mm
Length	68 mm
characteristics
Actuator	PAS2305

BUW4-250-DSTS-B x 1.0

BUW4-250-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 250mm; Length 68mm

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

APKTGB0014 x 1.0
