Valves, butterfly valves and gate valves - automatically operated

List prices PL
DN Length Voltage Design Switch type Function Material of case Type Sequence
200 mm 60 mm - - - - - BUW4-200-DSTS-D22 32530009
Varianten
DN Length Voltage Design Switch type Function Material of case Type Sequence
150 mm 56 mm 24VDC / 48V/50-60Hz Standard P&F NBN3-F25F-E8 NO PNP Plastic BUW4-150-DSTS-D22-ABS54-C001-03-C002-31-6-EB0X13 32530008

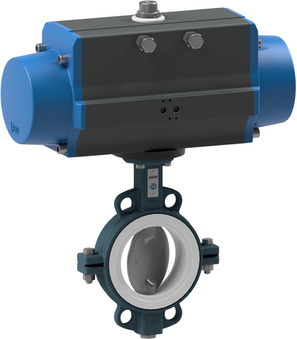

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22-A

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22-A

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22-A
Grundversion
DN Length Design Type Sequence
50 mm 43 mm ATEX BUW4-050-DSTS-D22-A 32540000
80 mm 46 mm ATEX BUW4-080-DSTS-D22-A 32540001
125 mm 56 mm ATEX BUW4-125-DSTS-D22-A 32540002
200 mm 60 mm ATEX BUW4-200-DSTS-D22-A 32540003
BUW4-040-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Actuator PAS0855
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
50 mm 43 mm - - BUW4-040-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
Grundversion
DN Length Switch type Function Material of case Design Type Sequence
50 mm 43 mm - - - ATEX BUW4-050-DSTS-S22-A 32560000
Varianten
DN Length Switch type Function Material of case Design Type Sequence
50 mm 43 mm - - - ATEX BUW4-050-DSTS-S22-A-ABS54-PI08 32560001
BUW4-050-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAS1005
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
50 mm 43 mm - - BUW4-050-DSTS-S22
BUW4-065-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS1005
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
65 mm 46 mm - - - ATEX BUW4-065-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
Grundversion
DN Length Design Voltage Type Sequence
65 mm 46 mm - - BUW4-065-DSTS-S22 32560002
65 mm 46 mm - - BUW4-065-DSTS-S22-3C 32560003
BUW4-065-DSTS-S22-A-ABS54-PI08
BUW4-065-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS1005
ABS54-PI08
Mounted pilot valve; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270; Hose connection Push-in fitting 8mm
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
65 mm 46 mm - - - ATEX BUW4-065-DSTS-S22-A-ABS54-PI08
BUW4-080-DSTS-S22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1255
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
80 mm 46 mm - - BUW4-080-DSTS-S22
BUW4-080-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1255
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
80 mm 46 mm - - - ATEX BUW4-080-DSTS-S22-A
BUW4-080-DSTS-S22-01
butterfly valve with pneumatic actuator series BUW4-DSTS-S22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1155
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
80 mm 46 mm - - BUW4-080-DSTS-S22-01
BUW4-080-DSTS-S22-A-ABS54-PI08
BUW4-080-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1255
ABS54-PI08
Mounted pilot valve; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270; Hose connection Push-in fitting 8mm
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
80 mm 46 mm - - - ATEX BUW4-080-DSTS-S22-A-ABS54-PI08
BUW4-080-DSTS-S22-3C01
butterfly valve with pneumatic actuator series BUW4-DSTS-S22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1155; inspection certificate EN-10204-3.1; for material, pressure and tightness
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22
DN Length Design Voltage Type
80 mm 46 mm - - BUW4-080-DSTS-S22-3C01
BUW4-100-DSTS-S22-A
Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1405
To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A
DN Length Switch type Function Material of case Design Type
100 mm 52 mm - - - ATEX BUW4-100-DSTS-S22-A
