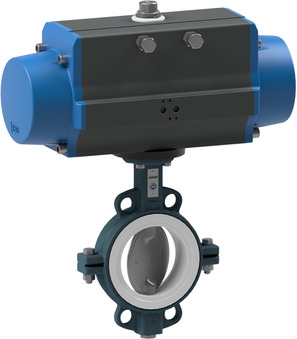

Butterfly valve with pneumatic actuator BUW4-065-DSTS-S22

Name: Butterfly valve with pneumatic actuator BUW4-065-DSTS-S22
Brand: STASTO
SKU: BUW4-065-DSTS-S22
Price: 4856.7 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS1005

Intrastat No.: 84818085
Country of origin: Italy

Weight: 11.3 Kg
Short Itemnumber: BUW4065DSTSS22

butterfly valve with pneumatic actuator series BUW4-DSTS-S22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 65mm; length 46mm; actuator PAS1005

4.856,70 zł 4856.7 PLN 4.856,70 zł

excl. tax

Valve interface Namur
- -
DN
- 65 mm
Length
- 46 mm
Connector size
- -
Design
- -
Voltage
- -
Coil
- -
Actuator
- PAS1005
Actuator 2
- -

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
DN	65 mm
Length	46 mm

Documents

Data sheets, drawings and CAD files

Pressure range	0...10bar
DN	65 mm
Length	46 mm

BUW4-065-DSTS-S22

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · BUW4065DSTSS22
CAD-STEP 10,9 MB Updated 04/10/2026

Download

BUW4-065-DSTS-B x 1.0 Pcs

BUW4-065-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm
