Ball valves - automatically operated

List prices PL
BA545-50-D0
Ball valve with pneumatic actuator; Full bore; Flange; Body, Ball AISI 316; Seals PTFE/EPDM Special; Double acting actuator; Control pressure 5,5...8bar; ; Medium temperature -45...+150°C; Nominal flange pressure PN40; Nominal diameter 50mm; Pressure range 0-40bar; Length 150mm; Actuator PAD063
BA368-40-S0-A
Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN40; Length 140mm; Actuator PAS0855

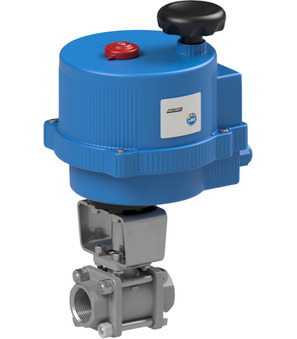

BA028-34-0E-C
Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified

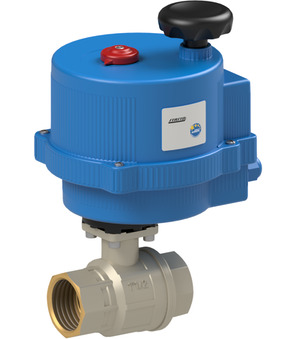

BA080-212-0H-01
Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 27s; Voltage 100-240VAC; VB110-H
BA033-20-CL
Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; DN 50mm; Pressure range 0-25bar; Length 136mm; Operating time 9s; Voltage 24VAC/DC; Electric actuator with positioner 4-20mA/0-10V;

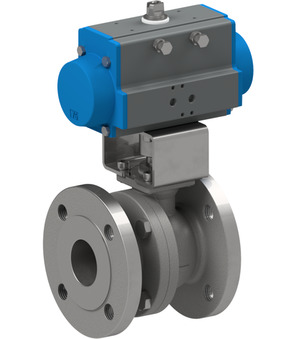

BA049-50-S1
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 3...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1251
BA118-10-0R
Ball valve with electrical actuator; Female thread; Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Connection G 1"; Nominal diameter 25mm; Pressure range 0...350bar; Length 113mm; Operating time 13s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED
BA645-25-S0-A-01
Flanged ball valve with pneumatic actuator; Flange PN63; Body, Ball 1.4401; Seals Fibre-glass-reinforced PTFE/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+150°C; Pressure range 0...63bar; Nominal diameter 25mm; Length 65mm; Actuator PAS0855-L Low temperature design
BA164-65-S0
Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals fibre-glass-reinforced PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 65mm; Length 103mm; Actuator PAS1155
BA049-50-T0
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; NO; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1005
BA075-50-S0-A-01
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 230mm; Actuator PAS1155; ATEX
BA220-TCC20-0H
Ball valve with electrical actuator; Tri-Clamp connection 2"; Body, Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 50mm; Pressure range 0-25bar; Length 136mm; Operating time 8s; Voltage 100-240VAC
BA391-20-CL-01
Ball valve with electrical actuator; V-Ball 30-60°; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Connection Rp 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 135mm; Actuator VB030-L-POS; Operating time 8s; Voltage 24V50-60Hz/DC; Incl. Positioner 4-20mA/0-10V
BADB-050-SSGV-0A
Motorised ball valve, 24VAC/DC, DN50/PN40 body and ball 1.4401 seal PTFE (15% glass fibre reinforced)
BAEB-040-SSTV-S0A
Ball valve with pneumatic rotary actuator 85 single-acting, body 1.4408, ball 1.4401, flange PN40 ATEX antistatic connection DN40

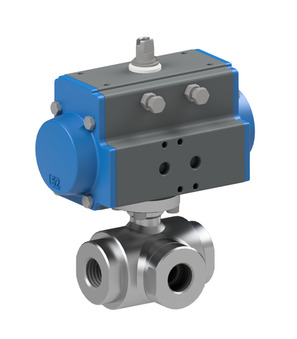

BA541-10-S0-3C-01
Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 102mm; Actuator PAS1005; Ball T; Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved
BA542-10-S0-3C-01
Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 102mm; Actuator PAS1005; Ball L; Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved
BAC1-009-SSCV-S001
Ball valve for steam with pneumatic rotary actuator 100 single-acting, thread f/f 2" material 1.4401, seal PTFE graphite-reinforced with mounted NAMUR solenoid valve ABS54, 24VDC, LED incl. speed control with mounted limit switch box EBOX03 connection RP2"

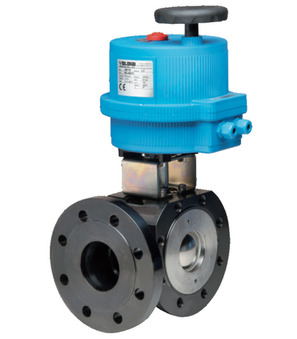

BA046-25-CL
Flanged ball valve with electrical actuator; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 25mm; DN ball 20mm; Length 64mm; Ball L; Operating time 8s; Voltage 24VAC/DC; Incl. Positioner 4-20mA/0-10V;
BAEA-065-UITV-D0A
Ball valve with pneumatic rotary actuator 85 double-acting, body 1.0619, ball 1.4408, flange PN 16 ATEX anti-static connection DN65
