BA391-20-CL-01
CVMTE-P-15-NC-002
CVMTE-P-15-NC-002
4.473,40 zł
4.473,40 zł
CVTE-P-25-NC-013
CVTE-P-25-NC-013
4.667,40 zł
4.667,40 zł

BA391-20-CL-01

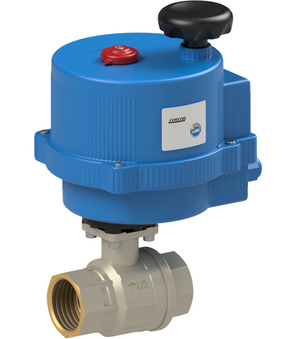

Ball valve with electrical actuator; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection Rp 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 135mm; V-Ball 30-60°; Operating time 8s; Voltage 24V50-60Hz/DC; Incl. Positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.5 Kg
Short Itemnumber:BA39120CL01
https://www.stasto.pl/web/image/product.template/159512/image_1920?unique=16faa87

ball valve with electrical actuator; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; connection Rp 2"; nominal diameter 50mm; pressure range 0...64bar; length 135mm; V-ball 30-60°; operating time 8s; voltage 24V50-60Hz/DC; incl. positioner 4-20mA/0-10V

5.422,50 zł 5422.5 PLN 5.422,50 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of stainless steel BA391-20-B-A-01
    BA391-20-B-A-01 x 1.0
    Ball valve made of stainless steel BA391-20-B-A-01
    Ball valve made of stainless steel Series BA391; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 135mm; V-Ball 30-60°
    Add to Cart
    Electrical actuator VB030-L-P0S
    VB030-L-P0S x 1.0
    Electrical actuator VB030-L-P0S
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
