Butterfly valve with manual gear box Series BUW-CSR-G Store

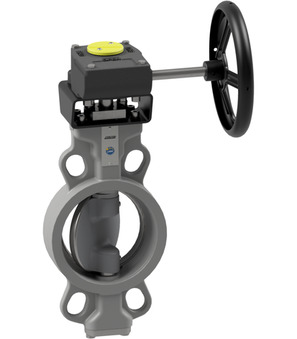

Butterfly valve with manual gear box BUW9-200-CSRQ-G

Name: Butterfly valve with manual gear box BUW9-200-CSRQ-G
Brand: STASTO
SKU: BUW9-200-CSRQ-G
Price: 10296.4 PLN
Availability: InStock

Butterfly valve with manual gear box Series BUW-CSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Pressure range 0...25bar; Medium temperature -10...+230°C; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 26.07 Kg
Short Itemnumber: BUW9200CSRQG

butterfly valve with manual gear box series BUW-CSR-G; wafer type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; pressure range 0...25bar; medium temperature -10...+230°C; DN 200mm; length 61mm; nominal flange pressure PN10/16/25/ANSI150

10.296,40 zł 10296.4 PLN 10.296,40 zł

DN
- 200 mm
Length
- 61 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...25 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	200 mm
Length	61 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...25 bar

BUW9-200-CSRQ-B x 1.0

Butterfly valve with bare shaft BUW9-200-CSRQ-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart
