Butterfly valve with manual gear box Series BUW-CSR-G Store

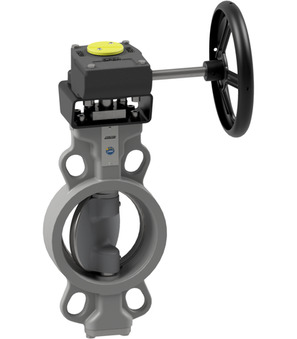

Butterfly valve with manual gear box BUW9-200-CSR2Q-G-3C

Name: Butterfly valve with manual gear box BUW9-200-CSR2Q-G-3C
Brand: STASTO
SKU: BUW9-200-CSR2Q-G-3C
Price: 11823.2 PLN
Availability: InStock

butterfly valve with manual gear box series BUW-CSR2-G-3C; fire-safe; wafer type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE/inconel 625-graphite; pressure range 0...25bar; medium temperature -10...+230°C; DN 200mm; length 61mm; nominal flange pressure PN10/16/25/ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.52 Kg
Short Itemnumber: BUW9200CSR2QG3C

11.823,20 zł 11823.2 PLN 11.823,20 zł

DN
- 200 mm
Length
- 61 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...25 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	200 mm
Length	61 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...25 bar

BUW9-200-CSR2Q-B-3C x 1.0

Butterfly valve with bare shaft BUW9-200-CSR2Q-B-3C

butterfly valve with bare shaft series BUW-CSR2-B-3C; fire-safe; wafer type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE/inconel 625-graphite; medium temperature -10...+230°C; pressure range 0...25bar; DN 200mm; length 61mm; nominal flange pressure PN10/16/25/ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
