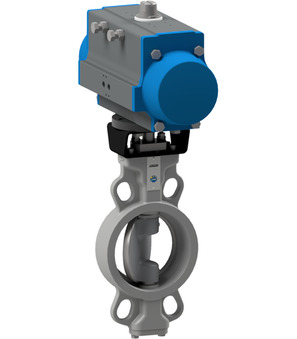

Butterfly valve with pneumatic actuator BUW9-200-CSRQ-D42

Butterfly valve with pneumatic actuator BUW9-200-CSRQ-D42

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 200mm; Length 61mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD160

Intrastat No.: 84818085
Country of origin: Italy
Weight: 43.89 Kg
Short Itemnumber: BUW9200CSRQD42
https://www.stasto.pl/web/image/product.template/151314/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW9-CSRS-D; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 200mm; length 61mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD160

15.132,00 zł 15132.0 PLN 15.132,00 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 61 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD160
BUW9-200-CSRQ-B x 1.0
Butterfly valve with bare shaft BUW9-200-CSRQ-B
Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAD160
PAD160 x 1.0
Pneumatic actuator PAD160
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 630Nm
Add to Cart
APKTGB0099 x 1.0
APKTGB0099
Mounting bracket For butterfly valve; DN200-F10-Square 22; Actuator F10-27
