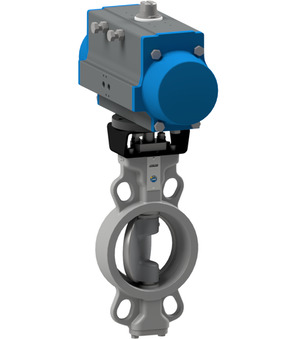

Butterfly valve with pneumatic actuator BUL5A-200-SSRQ-S42-A3C

Butterfly valve with pneumatic actuator BUL5A-200-SSRQ-S42-A3C

butterfly valve with pneumatic actuator BUL-SSR-B-A; ATEX II 2 G/D Ex h X; lug type; double eccentric; length according to EN558−1R20; housing and disc AISI 316; shaft AISI 630; seat RTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 200mm; length 61mm; pressure range 0…25bar; nominal flange pressure PN10; actuator PAS2305

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUL5A200SSRQS42A3C
https://www.stasto.pl/web/image/product.template/176269/image_1920?unique=f96ddcc

butterfly valve with pneumatic actuator BUL-SSR-B-A; ATEX II 2 G/D Ex h X; lug type; double eccentric; length according to EN558−1R20; housing and disc AISI 316; shaft AISI 630; seat RTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 200mm; length 61mm; pressure range 0…25bar; nominal flange pressure PN10; actuator PAS2305

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 61 mm
Flange PN10/16/25, ANSI150
design
Design ATEX
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD160
BUL5A-200-SSRQ-B-A3C x 1.0
Butterfly valve with bare shaft BUL5A-200-SSRQ-B-A3C
butterfly valve with bare shaft series BUL-SSR-B-A; ATEX II 2 G/D Ex h X; lug type; double eccentric; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; pressure range 0...25bar; DN 200mm; length 61mm; nominal flange pressure PN10
Add to Cart
Pneumatic actuator PAS2305
PAS2305 x 1.0
Pneumatic actuator PAS2305
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm
Add to Cart
APKTGB0153 x 1.0
APKTGB0153
Mounting bracket For butterfly valve; DN200-F10-Square 22; Actuator F16-46
Add to Cart
