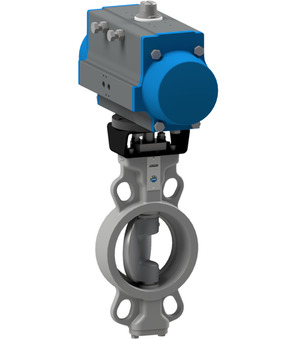

Butterfly valve with pneumatic actuator BUW9-150-CSIS-S12-A

Price:

999.999,00 zł
Butterfly valve with pneumatic actuator Series BUW9-CSIS-S-A Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with pneumatic actuator Series BUW9-CSIS-S-A
  6. BUW9-150-CSIS-S12-A
Butterfly valve with pneumatic actuator BUW9-150-CSIS-S12-A
Butterfly valve with pneumatic actuator BULS-080-SSIS-D22-A
Butterfly valve with pneumatic actuator BULS-080-SSIS-D22-A
cena na zapytanie
Butterfly valve with pneumatic actuator BULC-250-DSE-T22
Butterfly valve with pneumatic actuator BULC-250-DSE-T22
15.513,80 zł
15.513,80 zł

Butterfly valve with pneumatic actuator BUW9-150-CSIS-S12-A

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S-A; ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.4 Kg
Short Itemnumber:BUW9150CSISS12A
https://www.stasto.pl/web/image/product.template/102238/image_1920?unique=f63a43a

butterfly valve with pneumatic actuator series BUW9-CSIS-S-A; ATEX II 2 G/D Ex h X; wafer type;double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2005-H

999.999,00 zł 999999.0 PLN 999.999,00 zł

cena na zapytanie

  • DN
  • Length
  • Flange
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS2005-H
BUW9-150-CSIS-B-A x 1.0
Butterfly valve with bare shaft BUW9-150-CSIS-B-A
Butterfly valve with bare shaft Series BUW9-CSIS-B-A;ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAS2005-H
PAS2005-H x 1.0
Pneumatic actuator PAS2005-H
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
Add to Cart
