Butterfly valve with pneumatic actuator Series BULG-DSE-T22, BULC-DSE-T22 Store

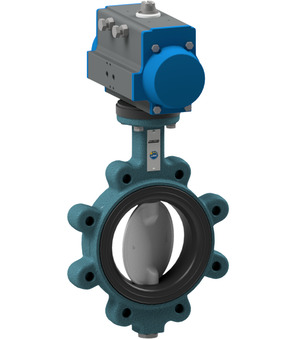

Butterfly valve with pneumatic actuator BULC-250-DSE-T22

Name: Butterfly valve with pneumatic actuator BULC-250-DSE-T22
Brand: STASTO
SKU: BULC-250-DSE-T22
Price: 14425.0 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BULG-DSE-T22, BULC-DSE-T22; NO; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Flange PN10; Actuator PAS2005

Intrastat No.: 84818085
Country of origin: Italy
Weight: 86.63 Kg
Short Itemnumber: BULC250DSET22

butterfly valve with pneumatic actuator series BULG-DSE-T22, BULC-DSE-T22; NO; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 250mm; length 68mm; flange PN10; actuator PAS2005

14.425,00 zł 14425.0 PLN 14.425,00 zł

DN
- 250 mm
Length
- 68 mm
Flange
- PN10
Actuator
- PAS2005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	250 mm
Length	68 mm
Flange	PN10
characteristics
Actuator	PAS2005

BULC-250-DSE-B x 1.0

Butterfly valve with bare shaft BULC-250-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0…10bar; Nominal flange pressure PN10

Add to Cart

PAS2005 x 1.0

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

APKTGB0013 x 1.0
