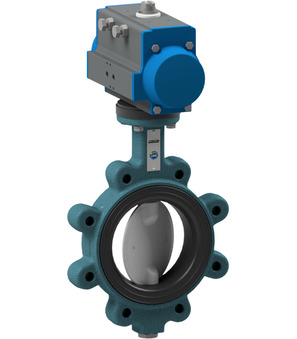

Butterfly valve with pneumatic actuator BULB-250-DSV-D32

Butterfly valve with pneumatic actuator BULB-250-DSV-D32

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN10; actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULB250DSVD32
https://www.stasto.pl/web/image/product.template/225388/image_1920?unique=70bacad

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN10; actuator PAD115

9.587,60 zł 9587.6 PLN 9.587,60 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
DN 250 mm
Length 68 mm
Flange PN10
Documents
Data sheets, drawings and CAD files
Pressure range 0...6bar
DN 250 mm
Length 68 mm
Flange PN10

BULB-250-DSV-D32

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
BULB-250-DSV-B x 1.0 Pcs
BULB-250-DSV-B
butterfly valve with bare shaft; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm
Pneumatic actuator PAD115
PAD115 x 1.0 Pcs
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
APKTGB0011 x 1.0 Pcs
APKTGB0011
Mounting bracket For butterfly valve; DN250-300-F10/F07
