Butterfly valve with pneumatic actuator Series BULI-D, BULB-D Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with pneumatic actuator Series BULI-D, BULB-D
  6. BULB-250-DSC-D32-ABS54-C001-03-C002-31-LT-2-01-EB0X02
BULB-250-DSC-D32-ABS54-C001-03-C002-31-LT-2-01-EB0X02

BULB-250-DSC-D32-ABS54-C001-03-C002-31-LT-2-01-EB0X02

BULB-250-DSC-D32

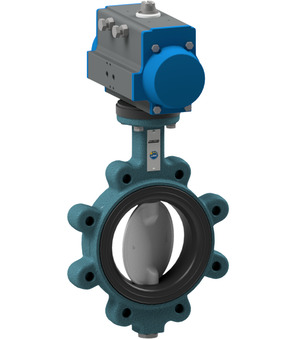

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Flange PN10; Actuator PAD115
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LT-2-01
Connector; With integrated LED-yellow and TVS; Connector size 22mm; With M12 connection; Voltage 24VAC/DC
EB0X02
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 100mA/24VDC; Switch type Crouzet 831618; Contact material Alloy of gold; Material of case Plastic

Intrastat No.: 84818085
Country of origin: Italy
Weight: 44.408 Kg
Short Itemnumber: BULB250DSCD32ABS54C00103C00231LT201EB0X02
https://www.stasto.pl/web/image/product.template/185073/image_1920?unique=f7ea1cc

BULB-250-DSC-D32
butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN10; actuator PAD115
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LT-2-01
connector; with integrated LED-yellow and TVS; connector size 22mm; with M12 connection; voltage 24VAC/DC
EB0X02
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 100mA/24VDC; switch type Crouzet 831618; contact material alloy of gold; material of case plastic

8.844,70 zł 8844.7 PLN 8.844,70 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
DN 250 mm
Length 68 mm
Flange PN10
Designs
Connector size 22
Switch type Crouzet 831618
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
Switching capacity 100mA/24VDC
materials
Contact material Alloy of gold
Material of case Plastic
characteristics
Coil C001
Actuator PAD115
