BA233-34-D9

BA233-34-D9

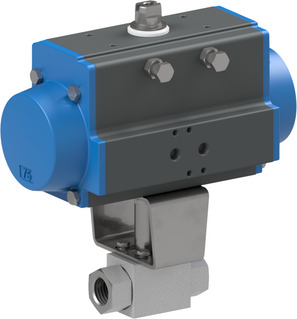

Ball valve with pneumatic actuator; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 3,5...8bar; Medium temperature -20...+100°C; For liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.38 Kg
Short Itemnumber: BA23334D9
https://www.stasto.pl/web/image/product.template/158991/image_1920?unique=f9f36bb

ball valve with pneumatic actuator; female thread; body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 3,5...8bar; medium temperature -20...+100°C; for liquids; G 3/4"; nominal diameter 20mm; pressure range 0...420bar; length 95mm; actuator PAD100

2.423,10 zł 2423.1 PLN 2.423,10 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...420bar
Brand STASTO
Pressure range 0...420bar
Brand STASTO
BA233-34-B x 1.0 Pcs
High pressure ball valve BA233-34-B
High pressure ball valve Series BA233; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C;; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAD100
PAD100 x 1.0 Pcs
Pneumatic actuator PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
