BA233-34-D7

Name: BA233-34-D7
Brand: STASTO
SKU: BA233-34-D7
Price: 2423.1 PLN
Availability: InStock

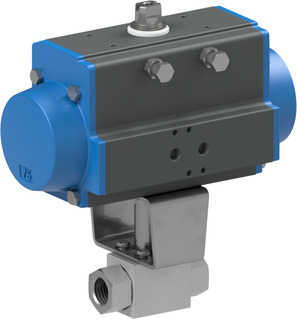

Ball valve with pneumatic actuator; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 2,5...8bar; Medium temperature -20...+100°C; For liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.38 Kg
Short Itemnumber: BA23334D7

ball valve with pneumatic actuator; female thread; body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 2,5...8bar; medium temperature -20...+100°C; for liquids; G 3/4"; nominal diameter 20mm; pressure range 0...420bar; length 95mm; actuator PAD100

2.423,10 zł 2423.1 PLN 2.423,10 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA233-34-B x 1.0

High pressure ball valve BA233-34-B

High pressure ball valve Series BA233; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C;; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Flange ISO5211 F05; Square 14mm

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

04808007001 x 1.0

04808007001

Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm

Add to Cart

A4/338/99 x 1.0

A4/338/99

Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm

Add to Cart
