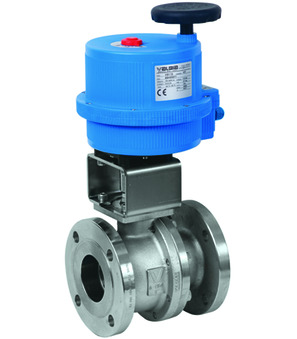

Flanged ball valve with electrical actuator BA115-80-0H

Price:

8.633,20 zł
Flanged ball valve with electrical actuator Series BA115 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with electrical actuator Series BA115
  6. BA115-80-0H
Flanged ball valve with electrical actuator BA115-80-0H
  2. STASTO Store
  3. Flanged ball valve with electrical actuator BA115-80-0H
Flanged ball valve with electrical actuator BA135-80-0R
Flanged ball valve with electrical actuator BA135-80-0R
13.020,50 zł
13.020,50 zł
Flanged ball valve with electrical actuator BA115-100-0H
Flanged ball valve with electrical actuator BA115-100-0H
10.832,80 zł
10.832,80 zł

Flanged ball valve with electrical actuator BA115-80-0H

Flanged ball valve with electrical actuator Series BA115; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals fibre-glass-reinforced PTFE/FKM; Medium temperature -10...+160°C; Flange PN40; DN 80mm; Pressure range 0...40bar; Length 180mm; Operating time 27s; Voltage 100...240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.32 Kg
Short Itemnumber:BA115800H
https://www.stasto.pl/web/image/product.template/131252/image_1920?unique=c096d6d

flanged ball valve with electrical actuator series BA115; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals fibre-glass-reinforced PTFE/FKM; medium temperature -10...+160°C; flange PN40; DN 80mm; pressure range 0...40bar; length 180mm; operating time 27s; voltage 100...240VAC

8.633,20 zł 8633.2 PLN 8.633,20 zł

cena na zapytanie

  • DN
  • Length
  • Design
  • Voltage
  • Pressure range
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 180 mm
design
Design ATEX
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Operating time 27 s
Flanged ball valve BA115-80-LLD-A
BA115-80-LLD-A x 1.0
Flanged ball valve BA115-80-LLD-A
Flanged ball valve Series BA115-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN40; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE glass fibre reinforced/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 80mm; Pressure range 0...40bar; Length 180mm
Add to Cart
Electrical actuator VB190-H
VB190-H x 1.0
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
dimension
DN 80 mm
Length 180 mm
design
Design ATEX
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Operating time 27 s
Flanged ball valve BA115-80-LLD-A
BA115-80-LLD-A x 1.0
Flanged ball valve BA115-80-LLD-A
Flanged ball valve Series BA115-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN40; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE glass fibre reinforced/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 80mm; Pressure range 0...40bar; Length 180mm
Add to Cart
Electrical actuator VB190-H
VB190-H x 1.0
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
