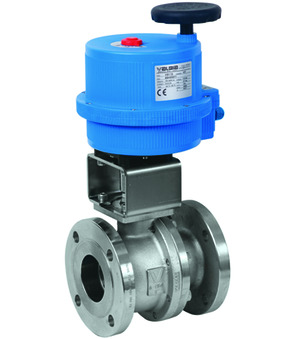

Flanged ball valve with electrical actuator BA115-100-0H

Flanged ball valve with electrical actuator BA115-100-0H

Flanged ball valve with electrical actuator Series BA115; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals fibre-glass-reinforced PTFE/FKM; Medium temperature -10...+160°C; Flange PN40; DN 100mm; Pressure range 0...40bar; Length 190mm; Operating time 50s; Voltage 100...240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 38.98 Kg
Short Itemnumber: BA1151000H
https://www.stasto.pl/web/image/product.template/135087/image_1920?unique=0225770

flanged ball valve with electrical actuator series BA115; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals fibre-glass-reinforced PTFE/FKM; medium temperature -10...+160°C; flange PN40; DN 100mm; pressure range 0...40bar; length 190mm; operating time 50s; voltage 100...240VAC

10.832,80 zł 10832.8 PLN 10.832,80 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Design
  • Voltage
  • Pressure range
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 100 mm
Length 190 mm
Operating time 50 s
All specifications (6)
Pressure range 0...40 bar
DN 100 mm
Length 190 mm
Operating time 50 s
Voltage 100-240VAC
Design ATEX
Flanged ball valve BA115-100-LLD-A
BA115-100-LLD-A x 1.0 Pcs
Flanged ball valve BA115-100-LLD-A
Flanged ball valve Series BA115-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN40; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE glass fibre reinforced/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 100mm; Pressure range 0...40bar; Length 190mm
Electrical actuator VB350-H
VB350-H x 1.0 Pcs
Electrical actuator VB350-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67
RI3552 x 1.0 Pcs
RI3552
Mounting bracket; F10/F07-F10; Bolt 17-18
