BA080-212-T0

BA080-212-T0

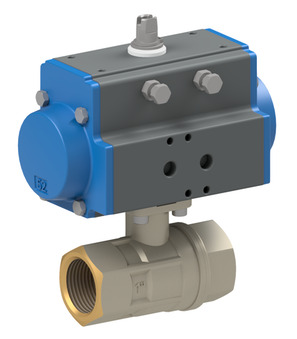

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-25bar; Length 165mm; Actuator PAS0855; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.91 Kg
Short Itemnumber: BA080212T0
https://www.stasto.pl/web/image/product.template/216346/image_1920?unique=3970b0b

ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0-25bar; length 165mm; actuator PAS0855; safety position NO

4.119,30 zł 4119.3 PLN 4.119,30 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 2500-21/2"
    2500-21/2" x 1.0
    Ball valve made of brass 2500-21/2"
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 165mm; Flange ISO5211 F07; Square 14mm
    Add to Cart
    Pneumatic actuator PAS0855
    PAS0855 x 1.0
    Pneumatic actuator PAS0855
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
