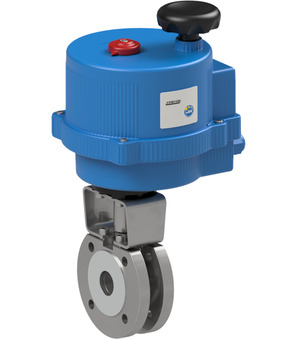

Flanged ball valve with electrical actuator BA049-65-QH

Name: Flanged ball valve with electrical actuator BA049-65-QH
Brand: STASTO
SKU: BA049-65-QH
Price: 8557.6 PLN
Availability: InStock

Flanged ball valve with electrical actuator Series 8E005; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 65mm; Pressure range 0-16bar; Length 103mm; Operating time 27s; Voltage 100-240VAC; NO-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.83 Kg
Short Itemnumber: BA04965QH

flanged ball valve with electrical actuator series 8E005; flange PN16; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 65mm; pressure range 0-16bar; length 103mm; operating time 27s; voltage 100-240VAC; NO-accumulator for safety position

8.557,60 zł 8557.6 PLN 8.557,60 zł

DN
- 65 mm
Length
- 103 mm
Voltage
- 100-240VAC
Pressure range
- 0...16 bar
Actuator
- VB110H
Operating time
- 27 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	103 mm
Electrical key figures
Voltage	100-240VAC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110H
Operating time	27 s

721000-65 x 1.0

Flanged ball valve 721000-65

Flanged ball valve Series 721000; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm

Add to Cart

VB110-H-AKKU-N0 x 1.0

Electrical actuator VB110-H-AKKU-N0

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100...240VAC; Function NO

Add to Cart

RI3003 x 1.0
