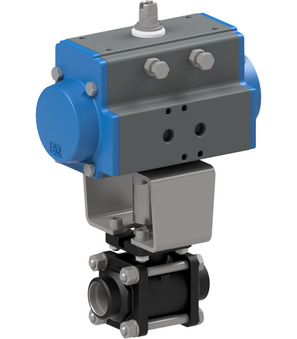

Ball valve with pneumatic actuator BA078-20-D0-A-01

Ball valve with pneumatic actuator BA078-20-D0-A-01

Ball valve with pneumatic actuator Series BA078-D0B/D01-A; ATEX II 2 G/D; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 20mm; Pressure range Steam 0…15bar; Length 76mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.85 Kg
Short Itemnumber:BA07820D0A01
https://www.stasto.pl/web/image/product.template/138670/image_1920?unique=f96ddcc

ball valve with pneumatic actuator series BA078-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 20mm; pressure range steam 0…15bar; length 76mm; actuator PAD075

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Design
  • Pressure range
  • Pressure range Steam
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 20 mm
Length 76 mm
design
Design ATEX
pressure
Pressure range 0...40 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01-A_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01-A_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01-A_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01-A_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01-A_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A_SRLATIN.pdf
Download
Ball valve made of steel 20-76
BA078-20-L-A x 1.0
Ball valve made of steel 20-76
Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 20mm; Length 76mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
