Ball valve with pneumatic actuator Series BA078-D0B/D01-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA078-D0B/D01-A
  6. BA078-15-D0B-A-01

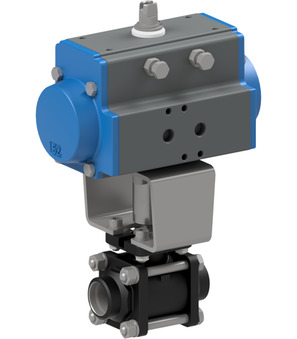

Ball valve with pneumatic actuator BA078-15-D0B-A-01

Ball valve with pneumatic actuator BA078-15-D0B-A-01

ball valve with pneumatic actuator; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 15mm; pressure range steam 0...15bar; length 65mm; actuator PAD052; incl. 2 pieces PI16-08-18-N-0-360

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.733 Kg
Short Itemnumber: BA07815D0BA01
https://www.stasto.pl/web/image/product.template/238262/image_1920?unique=bbc91d7

ball valve with pneumatic actuator; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 15mm; pressure range steam 0...15bar; length 65mm; actuator PAD052; incl. 2 pieces PI16-08-18-N-0-360

1.671,10 zł 1671.1 PLN 1.671,10 zł

cena na zapytanie

  • DN
  • Length
  • Design
  • Pressure range
  • Pressure range Steam
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 15 mm
Length 65 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01-A_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01-A_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01-A_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01-A_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01-A_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A_SRLATIN.pdf
Download
No spare parts are available for this product.
