BA075-40-S0-01

Name: BA075-40-S0-01
Brand: STASTO
SKU: BA075-40-S0-01
Price: 4540.8 PLN
Availability: InStock

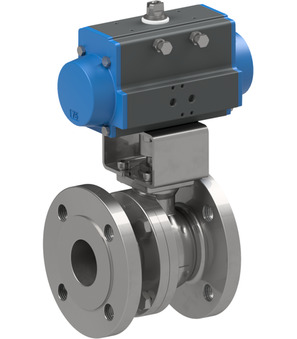

Flanged ball valve with pneumatic actuator Series BA075;; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 200mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.52 Kg
Short Itemnumber: BA07540S001

flanged ball valve with pneumatic actuator series BA075;; Fire-Safe/Antistatik according to ATEX/TA-Luft; length according to EN558−1 R1; body A216-WCB; ball AISI 304; stem seal 2-fold PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 40mm; pressure range 0-40bar; flange PN40; length 200mm; actuator PAS0855

4.540,80 zł 4540.8 PLN 4.540,80 zł

DN
- 40 mm
Length
- 160 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS0855

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	160 mm
Flange	PN40
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS0855

760802-40 x 1.0

760802-40

Flanged ball valve; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 200mm

Add to Cart

RI3526 x 1.0

RI3526

Mounting kit for PKH F07/F05-F05 stud 17-10

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart
