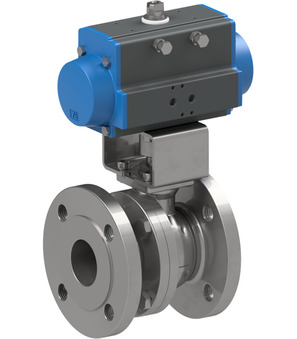

Flanged ball valve with pneumatic actuator BA075-25-S0-01

Name: Flanged ball valve with pneumatic actuator BA075-25-S0-01
Brand: STASTO
SKU: BA075-25-S0-01
Price: 2916.8 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA075;; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 160mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.91 Kg
Short Itemnumber: BA07525S001

flanged ball valve with pneumatic actuator series BA075;; Fire-Safe/Antistatik according to ATEX/TA-Luft; length according to EN558−1 R1; body A216-WCB; ball AISI 304; stem seal 2-fold PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 25mm; pressure range 0-40bar; flange PN40; length 160mm; actuator PAS0635

2.916,80 zł 2916.8 PLN 2.916,80 zł

excl. tax

DN
- 25 mm
Length
- 125 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS0635
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...40 bar
DN	25 mm
Flange	PN40
Length	125 mm

All specifications (6)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	25 mm
Flange	PN40
Length	125 mm
Design	ATEX
Brand	STASTO

760802-25 x 1.0 Pcs

760802-25

Flanged ball valve; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 160mm

RI3525 x 1.0 Pcs

RI3525

Mounting bracket; F05/F07-F05,14-8

PAS0635 x 1.0 Pcs

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
