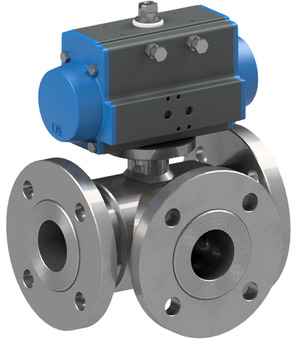

Flanged ball valve with pneumatic actuator BA055-80-072-01

Name: Flanged ball valve with pneumatic actuator BA055-80-072-01
Brand: STASTO
SKU: BA055-80-072-01

Flanged ball valve with electrical actuator Series BA055, BA056; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 260mm; Pressure range 0…16bar; Flange PN16; Ball L; Actuator AUMA SQ05.2; Operating time 16s; Voltage 400V 50Hz 3-ph AC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA0558007201

flanged ball valve with electrical actuator series BA055, BA056; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; medium temperature -20...+160°C; nominal diameter 80mm; length 260mm; pressure range 0…16bar; flange PN16; ball L; actuator AUMA SQ05.2; operating time 16s; voltage 400V 50Hz 3-ph AC

On request

DN
- 80 mm
Length
- 260 mm
Flange
- PN16
Ball
- L
Pressure range
- 0...16 bar
Actuator
- PAD100

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	80 mm
Length	260 mm
Flange	PN16
Designs
Ball	L
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD100

BA055-80-B x 1.0

Flanged ball valve BA055-80-B

Flanged ball valve Series BA055, BA056; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 80mm; DN ball 80mm; Pressure range 0...16bar; Flange PN16; Length 260mm; Ball L; Flange ISO5211 F07; Square 17mm

Add to Cart

SQ05.2-0M16-Q11-01 x 1.0

SQ05.2-0M16-Q11-01

Electrical actuator; AUMA NORM SQ05.2; Flange: F05-F07; AF11; Voltage 400V/50Hz; 3-phase; Protection class IP68; Operating time 16 Seconds; 50-150Nm; Connection plan 00R1AA-101-000

Add to Cart
